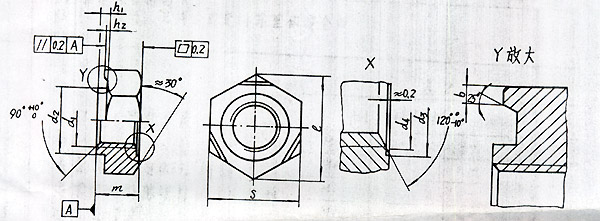

DIN929-1987 标准
螺纹规格
|
b |
d2 |
d3 |
d4 |
e |
h1 |
h2
|
m |
s |
千件重量 |
||||||||
| 极偏 | 限差 | d11 |
h13 |
max |
min |
极偏 |
限差 | 极偏 |
限差 | h14 |
h13 |
(7.85kg/dm3)
KG≈ |
||||||
M3 |
- |
- |
0.8 |
±0.2 |
4.5 |
4.5 |
3.15 |
8.15 |
0.55 |
0-0.1 |
0.25 |
0-0.1 |
3 |
7.5 |
0.78 |
|||
M4 |
- |
- |
0.8 |
6 |
6 |
4.2 |
9.83 |
0.65 |
0.35 |
3.5 |
9 |
1.13 |
||||||
M5 |
- |
- |
0.8 |
7 |
7 |
5.25 |
10.95 |
0.7 |
0.4 |
4 |
10 |
1.73 |
||||||
M6 |
- |
- |
0.9 |
±0.22 |
8 |
8 |
6.3 |
12.02 |
0.75 |
0-0.15 |
0.4 |
5 |
11 |
2.50 |
||||
M7 |
- |
0.9 |
9 |
9 |
7.35 |
13.14 |
0.8 |
0.5 |
5.5 |
12 |
3.24 |
|||||||
M8 |
(m8X1) |
- |
1 |
±0.25 |
10.5 |
10.5 |
8.4 |
15.38 |
0.9 |
0.5 |
0-0.15 |
6.5 |
14 |
5.27 |
||||
M10 |
(m10X1.25) |
(M10x1) |
1.25 |
±0.3 |
12.5 |
12.5 |
10.5 |
18.74 |
1.15 |
0-0.2 |
0.65 |
8 |
17 |
9.58 |
||||
- |
- |
7/16-20UNF-2B |
1.25 |
13.5 |
13.5 |
11.7 |
20.91 |
1.4 |
0.8 |
10 |
19 |
14 |
||||||
M12 |
(m12X1.25) |
(M12x1.5) |
1.25 |
14.8 |
14.8 |
12.6 |
20.91 |
1.4 |
0.8 |
0-0.2 |
10 |
19 |
13.7 |
|||||
M14 |
(m14X1.5) |
- |
1.5 |
±0.4 |
16.8 |
16.8 |
14.7 |
24.27 |
1.8 |
1 |
11 |
22 |
21.3 |
|||||
M16 |
(m16X1.5) |
- |
1.5 |
18.8 |
18.8 |
16.8 |
26.51 |
1.8 |
1 |
13 |
24 |
28.5 |
||||||
