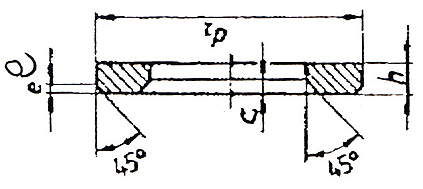

DIN6916 标准
|
规格 |
内径D1 |
外径D2 |
厚度H |
C |
E |
Mass ()7.8kg/dm3) |
||||||
最小 |
最大 |
最大 |
最小 |
中间 |
最厚 |
最薄 |
最小 |
最大 |
||||
13 |
M12 |
13 |
13.27 |
24 |
23.48 |
3 |
3.3 |
2.7 |
1.6 |
1.9 |
0.5 |
7.03 |
17 |
M16 |
17 |
17.27 |
30 |
29.48 |
4 |
4.3 |
3.7 |
1.6 |
1.9 |
1 |
14.6 |
21 |
M20 |
21 |
21.33 |
37 |
36.38 |
4 |
4.3 |
3.7 |
2 |
2.5 |
1 |
19.8 |
23 |
M22 |
23 |
23.33 |
39 |
38.38 |
4 |
4.3 |
3.7 |
2 |
2.5 |
1 |
24.3 |
25 |
M24 |
25 |
25.33 |
44 |
43.38 |
4 |
4.3 |
3.7 |
2 |
2.5 |
1 |
30.6 |
28 |
M27 |
28 |
28.52 |
50 |
49 |
5 |
5.6 |
4.4 |
2.5 |
3 |
1 |
50.2 |
31 |
M30 |
31 |
31.62 |
56 |
54.8 |
5 |
5.6 |
4.4 |
2.5 |
3 |
1 |
63.2 |
| 37 |
M36 |
37 |
37.62 |
66 |
64.8 |
6 |
6.6 |
5.4 |
3 |
3.5 |
1.5 |
115 |
