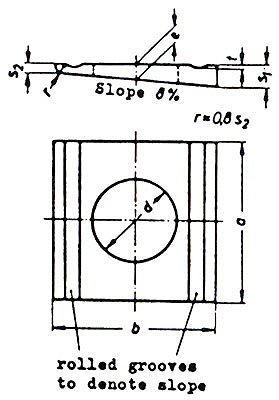

DIN434 标准
|
d |
a |
b | e | s1 | s2 | t | Weight(7.8kg/dm3 kg/1000pieces) | for thread diameter | |
9 11 14 |
9.5 |
22 |
22 22 30 |
2.9 2.9 3.7 |
3.8 3.8 4.9 |
2 2 2.5 |
0.5 0.5 0.7 |
9.50 8.80 18.3 |
8 10 12 |
| 18 22 24 |
- |
32 40 44 |
36 44 50 |
4.45 5.25 6 |
5.9 7 8 |
3 3.5 4 |
0.8 0.9 1 |
31.4 57.0 82.5 |
16 20 22 |
26.2 30.2 |
27 |
56 |
56 56 |
6.25 6.25 |
8.5 8.5 |
4 4 |
1 1 |
128 119 |
24 27 |
